Prepared fruit → pulp & puree
DJ two-stage pulpers, screened finishing and dedicated stone-fruit destoning equipment.
Compare DJ-3 to DJ-25 for a new pulping duty, a line upgrade or a screen replacement. Start with your fruit condition, prepared-feed rate and target texture.
DJ two-stage family / five sizes
Use the catalogue frame as a starting point. The project duty fixes the feed basis, screens and acceptance.
| DJ model | Catalogue capacity (t/h) | Catalogue motor power (kW) | DJ family screen range (mm) |
|---|---|---|---|
| DJ-3 | 1–3 | 4.0 × 2 | 0.4–1.5 |
| DJ-5 | 5 | 7.5 × 2 | 0.4–1.5 |
| DJ-10 | 10 | 18.5 × 2 | 0.4–1.5 |
| DJ-15 | 15 | 30 + 18.5 | 0.4–1.5 |
| DJ-25 | 25 | 45 + 37 | 0.4–1.5 |
Swipe the table for motor power and screen range.
Reference values: capacity basis, shipped screens and selected configuration remain to be agreed. Read the common catalogue basis.
Pulping or destoning?
DJ pulpers divide primary separation and finishing between two chambers. Large-stone fruit needs a qualified stone-removal duty before fine screening.

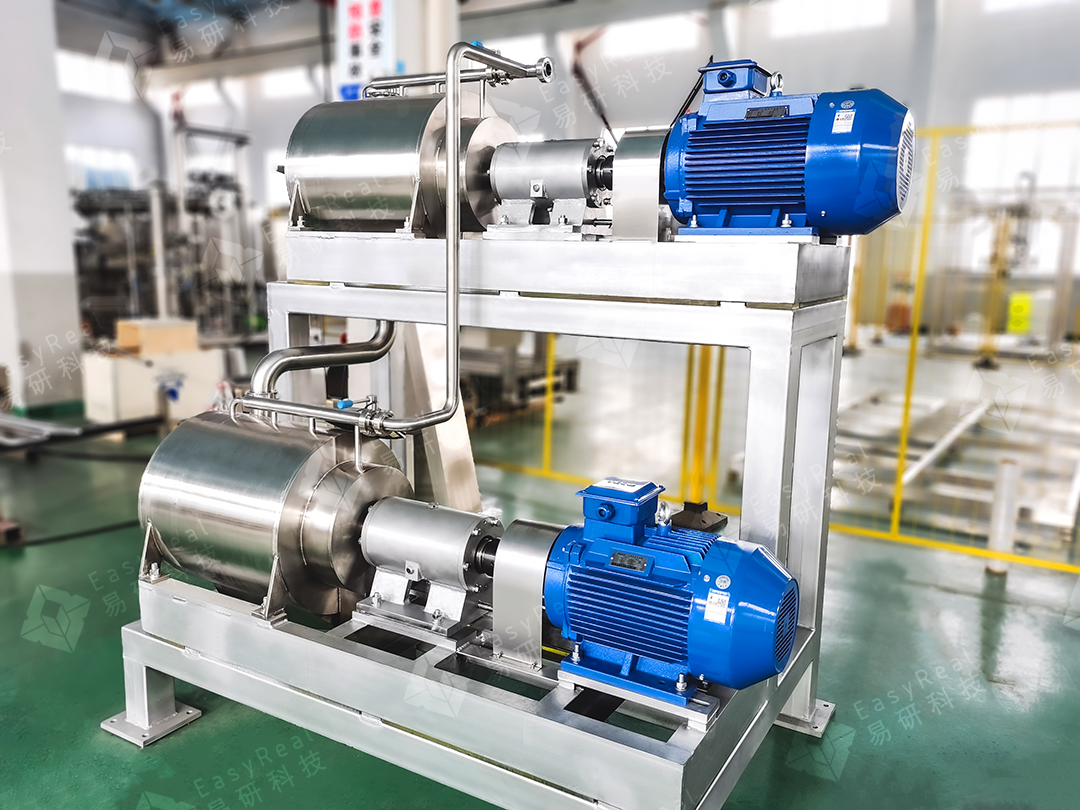

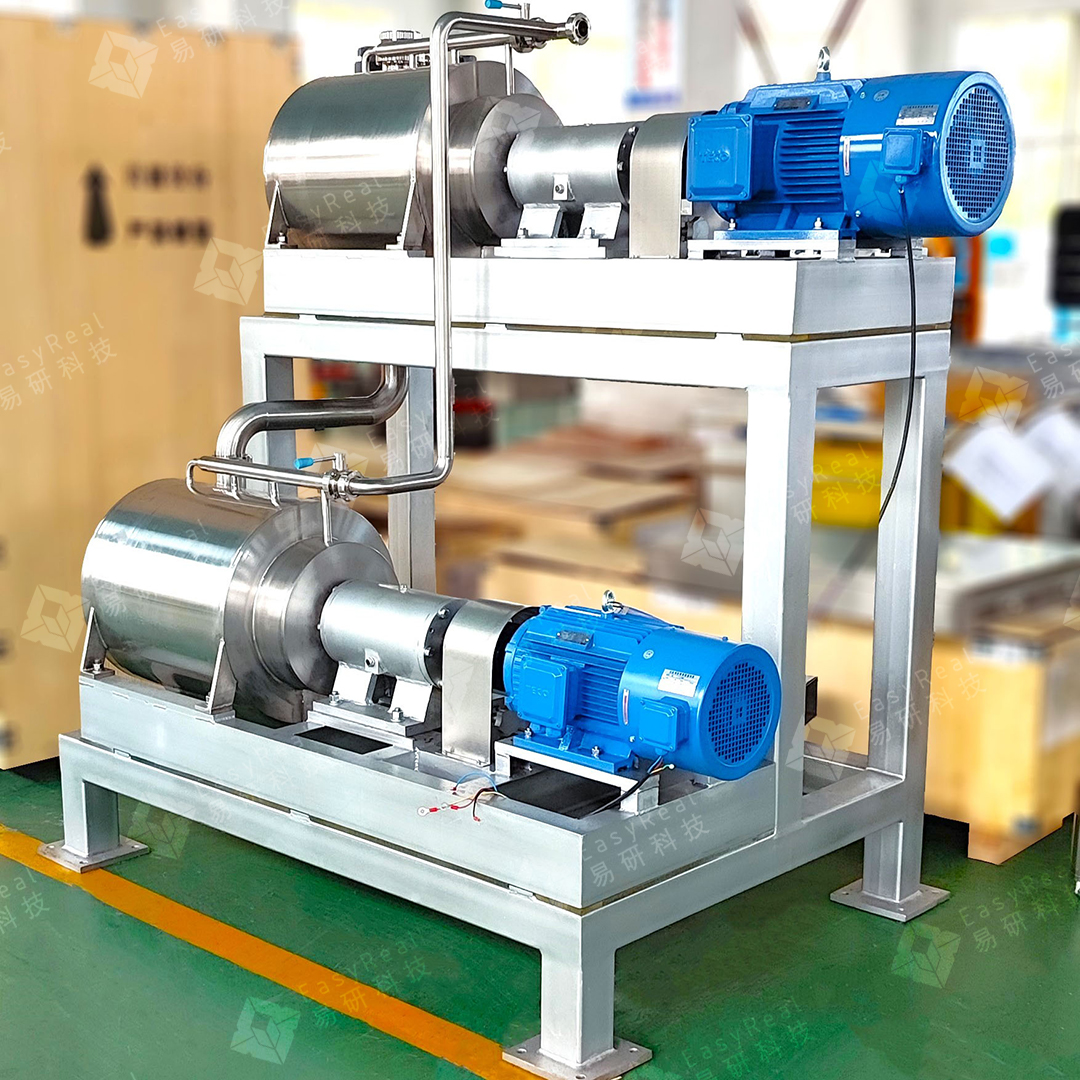

01 / DJ series · five catalogue sizes
Pulp or puree from the two screened stages, with retained peel, seeds and fibre discharged separately.

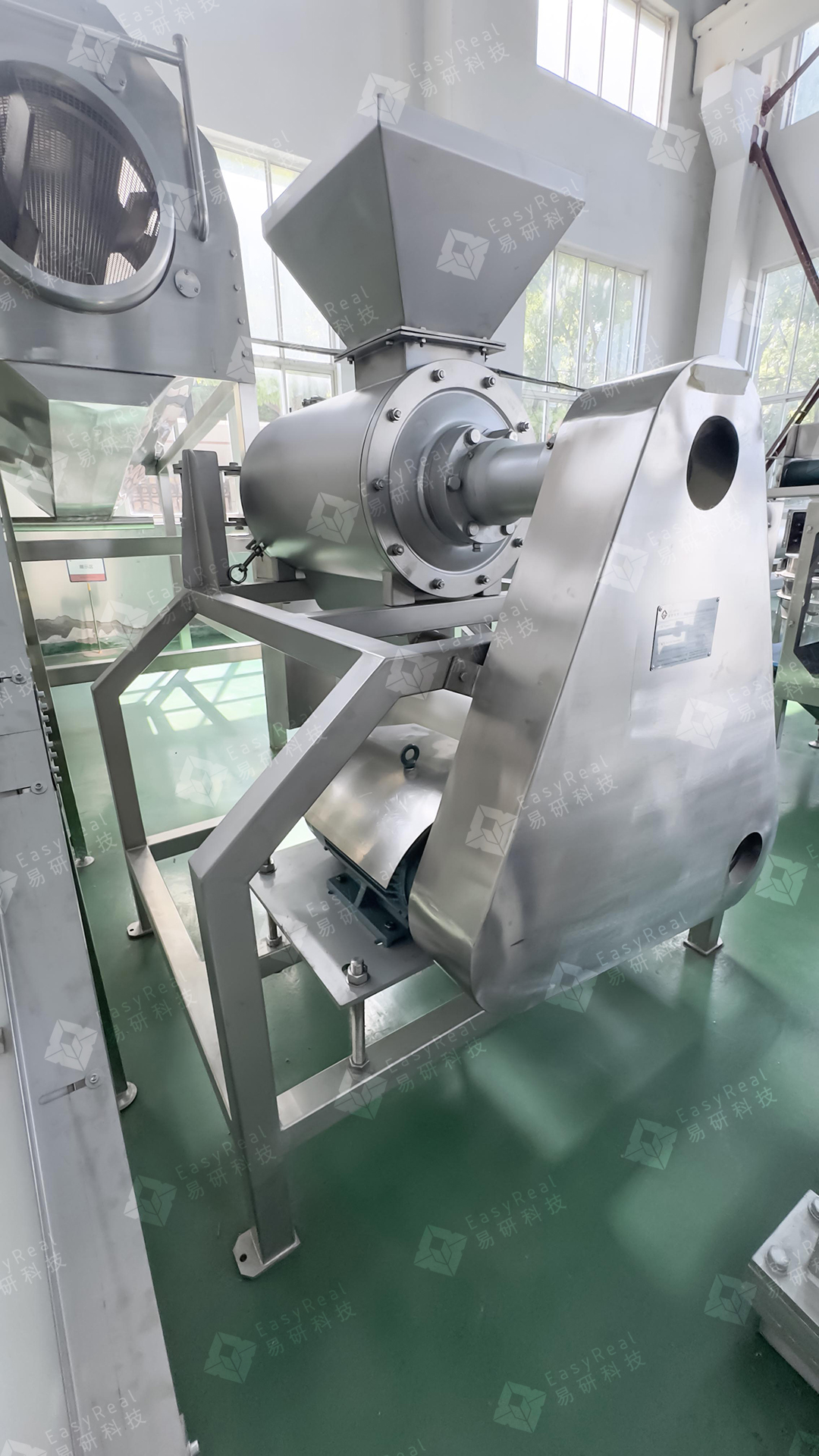

02 / Dedicated stone handling
Coarse pulp, separated stones and retained peel/fibre; downstream refinement depends on the finished product target.
Photo-guided presentation images show the equipment families. They are edits based on actual workshop photographs, not exact-model or customer-installation records; confirm the exact model, dimensions and tested duty in your quotation.
Functional cutaway / principle illustration
This schematic shows one screened separation chamber. A DJ two-stage duty repeats the separation on the first accepted stream.
Swipe the diagram to follow both outlets.
Principle illustration; not a photograph, machine drawing or speed demonstration.
Screens, wear and changeover
Review relative openings, loading and the texture checks to keep with a screen trial.
Compare aperturesOrder by stage, basket drawing and matching assembly rather than aperture alone.
Specify a replacement screenDefine screen removal, rotor inspection, isolation and the parts list before a shutdown.
Maintenance and sparesStart with your fruit
Stone handling before final pulp refining.
Separate seeds and skin from prepared tomato.
Evaluate seed separation and puree texture.
Define seed retention and prepared extraction.
Finish prepared, peeled and deseeded flesh.
Specify peeled feed and the puree target.
Machine structure
Present a controlled material stream to the separation chamber without hiding the upstream preparation duty.
Move material against the screen with a defined mechanical action while transporting retained solids towards discharge.
Provide the separation surface through which the desired product fraction passes.
Remove retained solids as a distinct measured stream without treating dryness alone as success.
Capture and transfer the through-screen stream while preserving an identifiable sampling boundary.
Support the defined rotor duty and planned maintenance access without using installed power as a stand-alone performance claim.
Trial and acceptance
Keep representative samples and the actual screen/rotor settings with a measured collection interval.
Plan samples and video coverage Calculate a measured balanceEquipment quotation
Send the fruit, prepared-feed rate and target pulp or puree. Include a drawing or trial record when available; you can enquire without a screen size.
